Modular belts

With modular belts we have a flexible transport solution that allows you to convey, sort and position large quantities of goods. Because the modular belt is made of links made of plastic or metal, a very versatile conveyor belt can be realized with a width of 34mm up to 4,000mm and larger.

Custom modular belts for interna material handling

With a modular belt made of plastic or metal links, it is possible to realize a conveyor surface consisting of one piece. Due to the modular nature of these belts, a conveyor belt can be realized with a variable width and length. Modular belts, despite their flexible nature, provide a stable surface for your goods. In addition, the modular nature makes the belt easy to install and maintain yourself.

The modular belt has a large carrying capacity, making it possible to convey and accumulate large quantities of goods. The belts are available in many material types and can be equipped with various accessories such as carriers, rubber inserts, side guards etc. Thus, modular belts offer the ideal solution for your internal transport system, regardless of the volumes and bottlenecks of your production.

Products

Here is an overview of the modular belts we can supply.

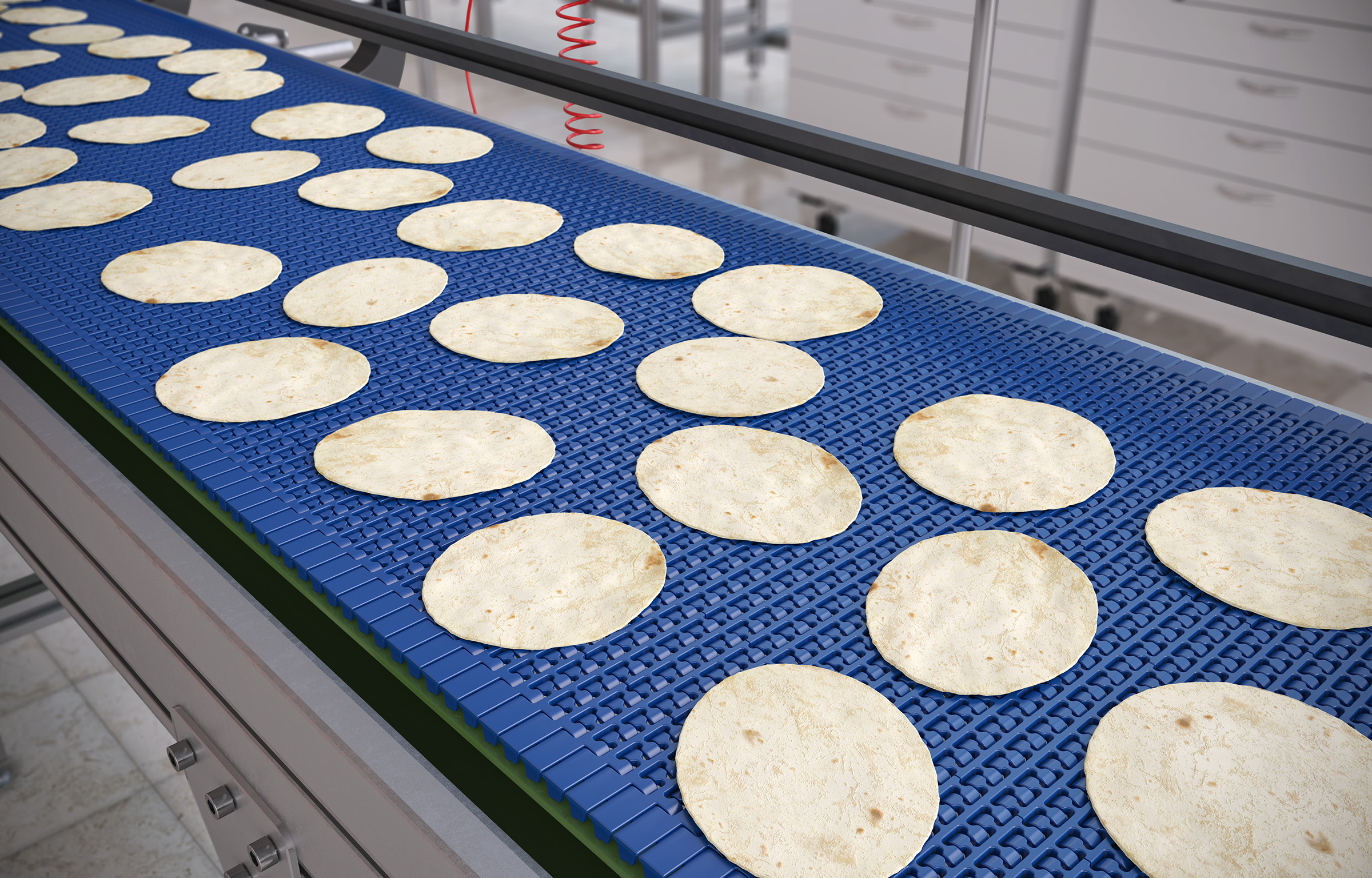

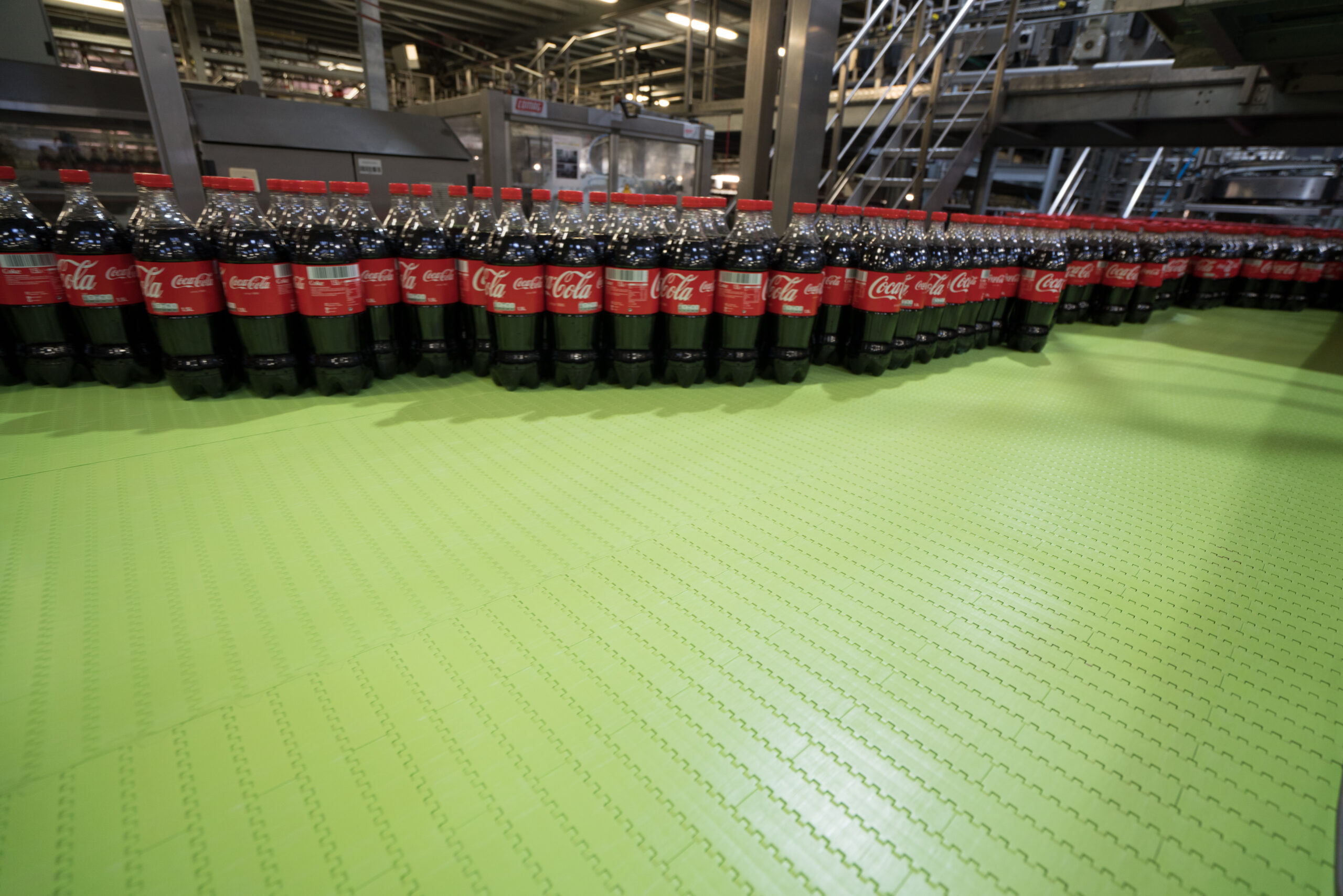

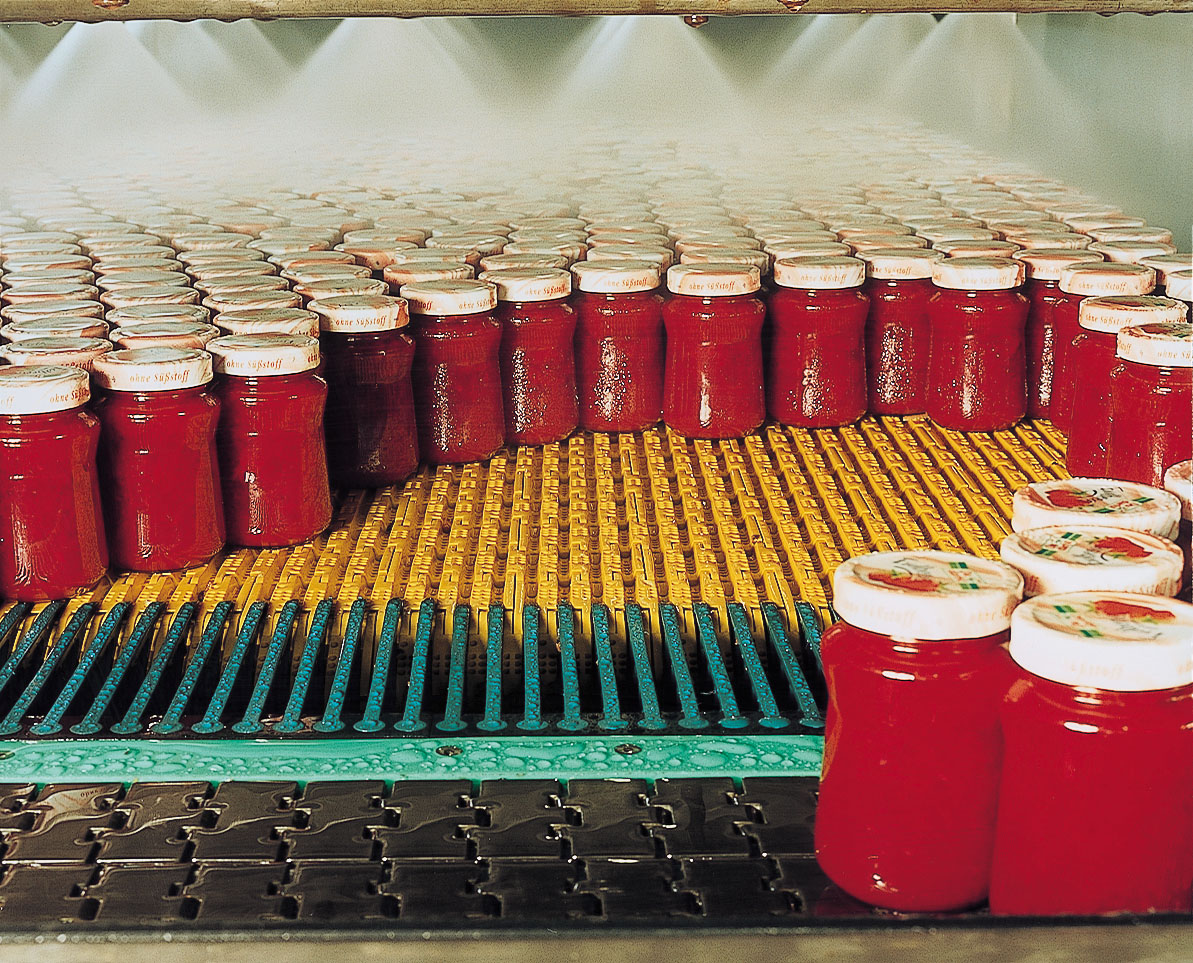

Modular straight belts
From conveying a can of soda to transporting a truck with a fully loaded trailer. The modular conveyor belt provides the solution.
- Belt pitch from 8mm to 76.2mm
- Flat top, Flush grid, Nub top, Rubber top, Raised rib etc.
- Hybrid modular belts (Mix of stainless steel and plastic).
- Available with positrack belt guide
- Standard materials: PP, POM, PE, PBT
- Optional materials: Antistatic, Metal detectable, flame retardant etc.
Regal-Rexnord-Modular-straight-belts

Systemplast Modular straight belts

MOVEX-Modular-straight-belts

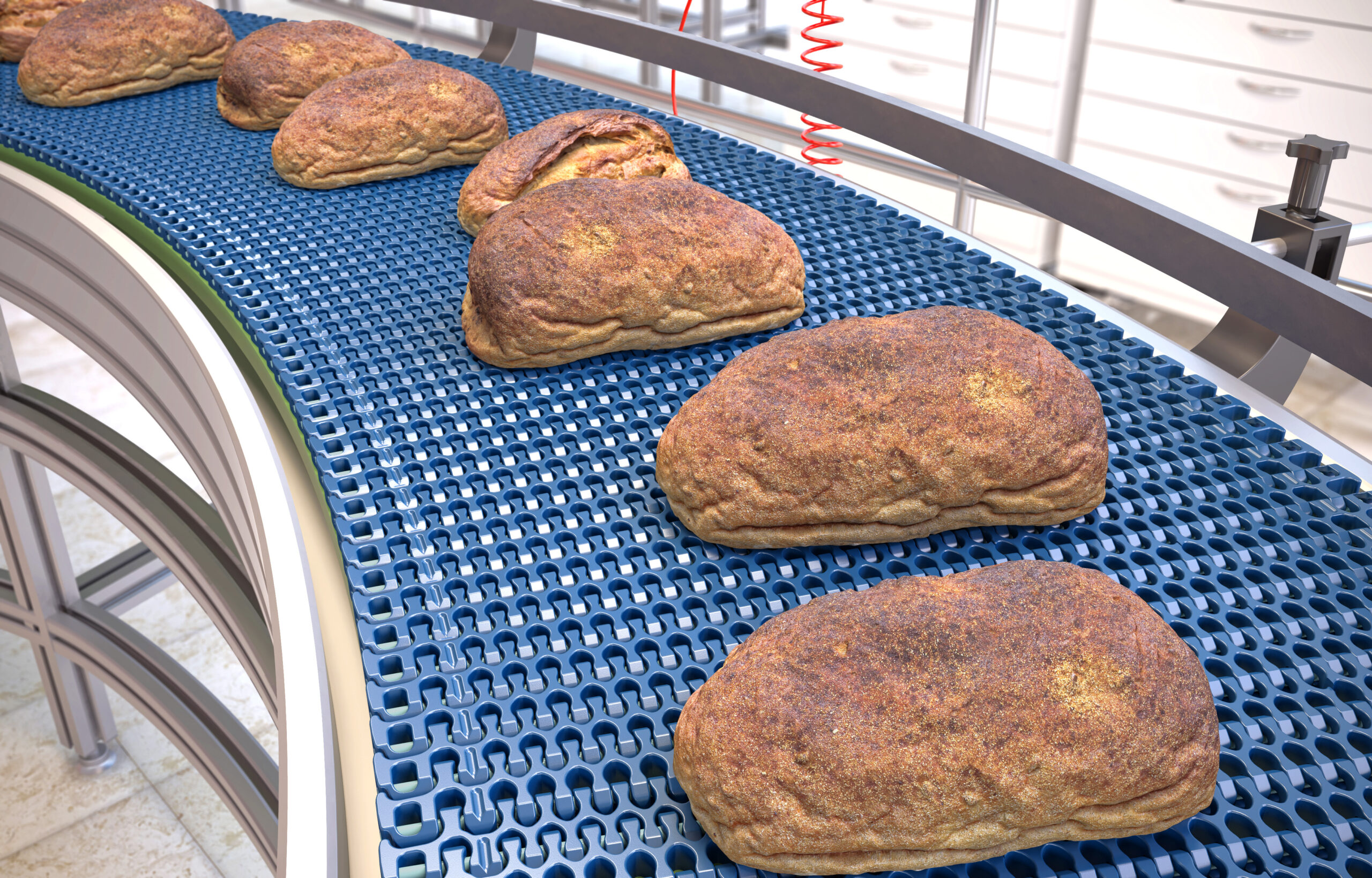

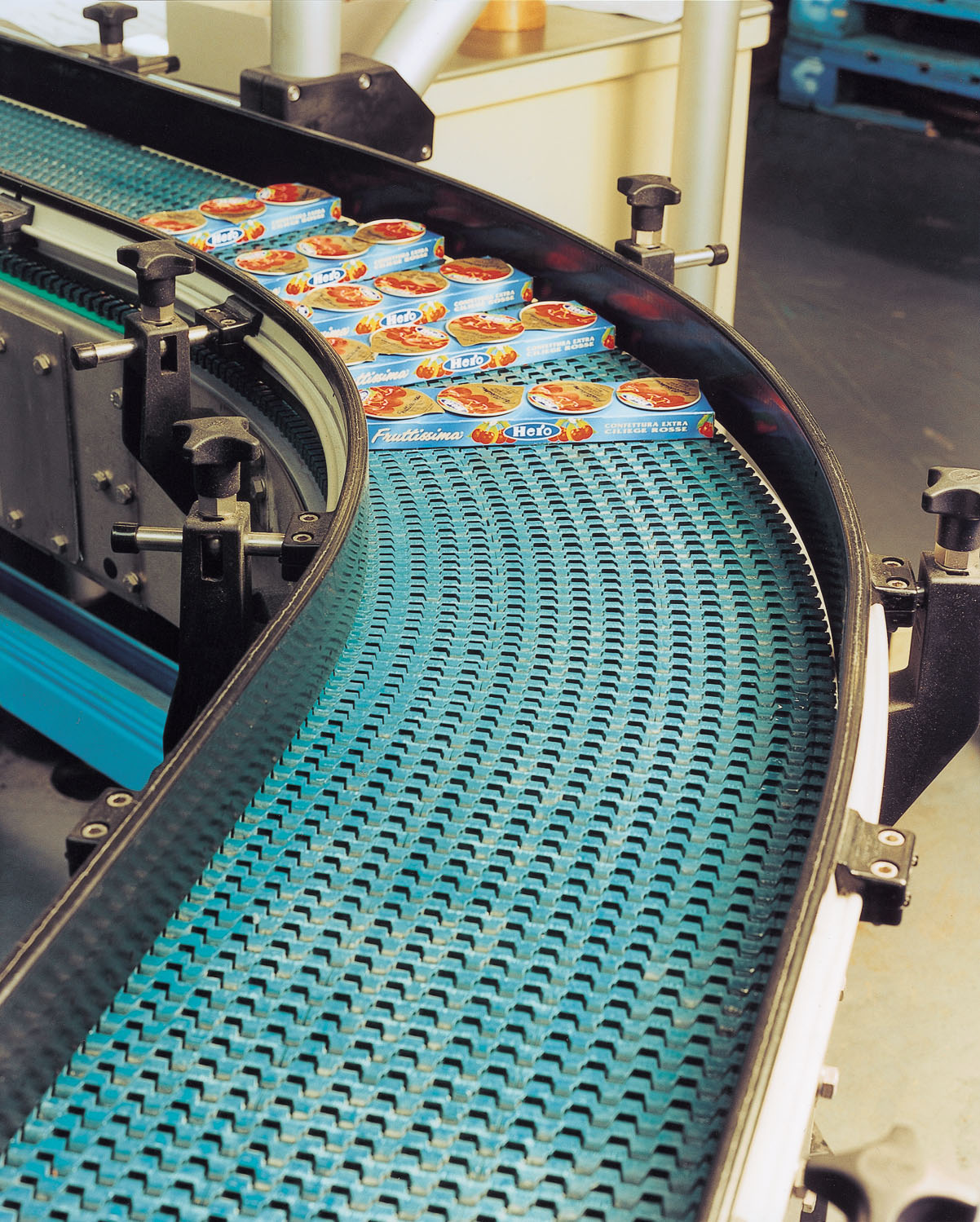

Modular curved belts
Round the bend in combination with straight transport with as few transitions as possible, then the modular bend belts offer the solution.
- Belt pitch from 12.7mm to 76.2mm
- Rubber top, High deck, Heavy duty, Tight radius
- Available with positrack belt guide
- Standard materials: PP, POM, PE, PBT
- Smallest inner radius of 1x tire width
Regal-Rexnord-Modular-curved-belts

Systemplast-Modular-curved-belts

MOVEX-Modular-curved-belts

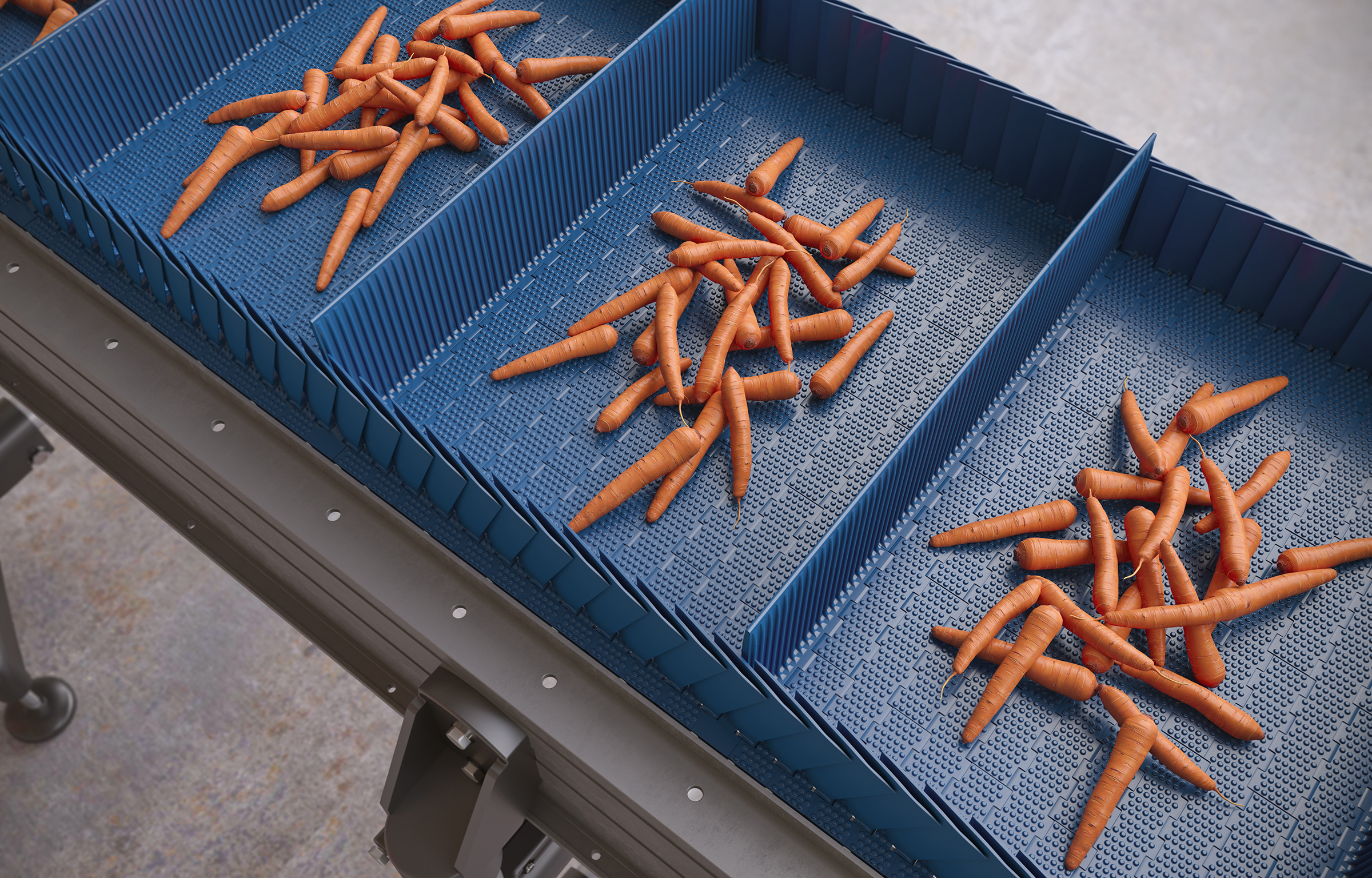

Hygienic belts
The functionality, cleanability, coloration and certification of the materials used are the starting points of the design of the hygienic belts.
- FDA certified belt materials
- Color blue and white
- Rubber top, High deck, Heavy duty, Tight radius, Perforated top
- Standard materials: PP, POM
Regal-Rexnord-Kleantop
Modsort
Conveying, sorting, selecting, ejecting, slowing down, speeding up, turning, distributing small and large products in a conveyor system: Modsort is the solution
- Complete conveyor ready for connection to control system
- Individual belts also available for new construction and overhaul
- Standard materials: POM Blue
Regal-Rexnord-Modsort-Range

Regal-Rexnord-Modsort-Engineeringmanual

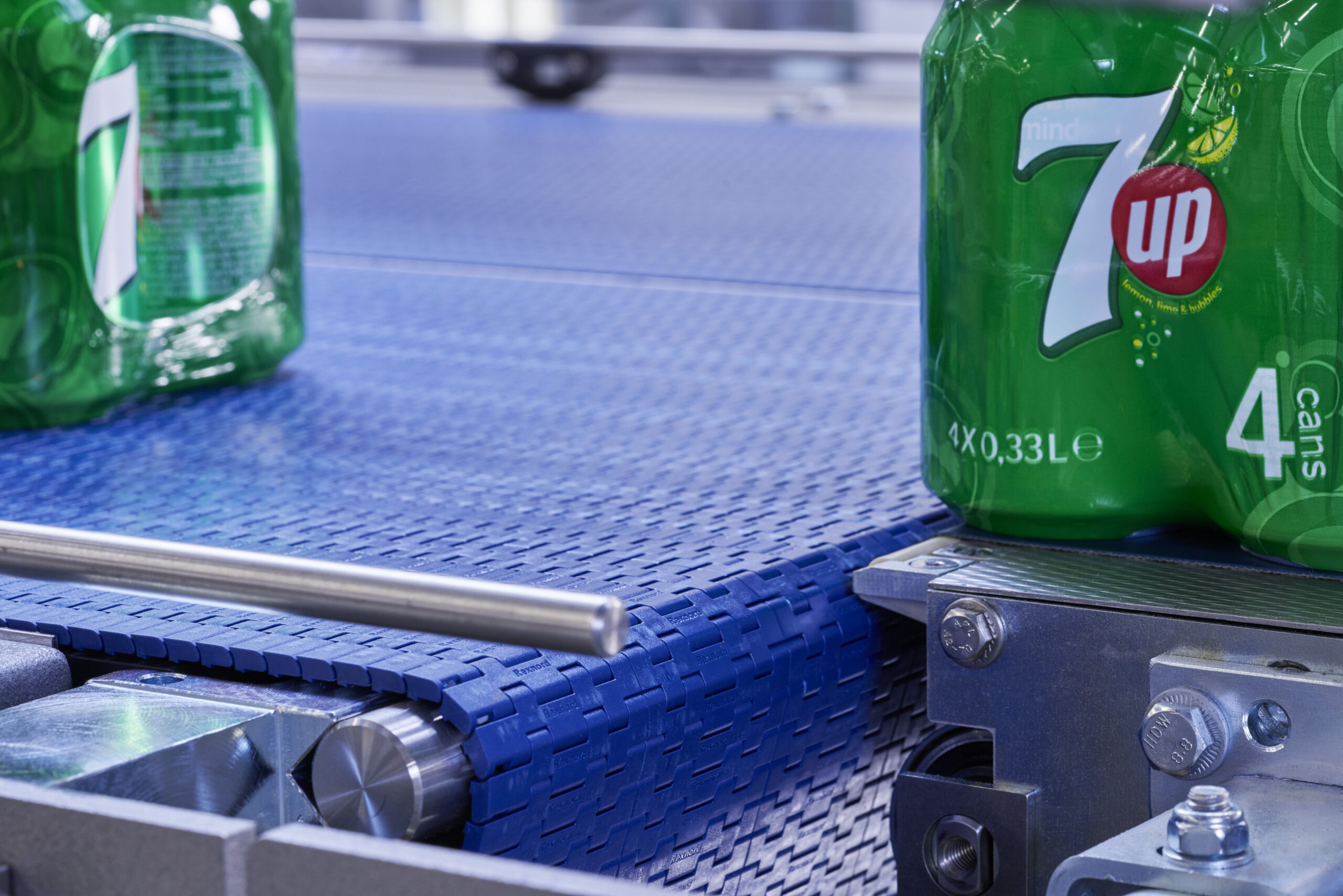

Modular solutions from MOVEX
MOVEX supplies your the complete ZeroContact curve belts, compact transitions type ZeroATP and transfer units 553 for accelerating , decelerating , turning , sorting , etc….
- Optionally with or without motor
- Optionally available with supports at various lengths
- Available in acetal and MX polybutyl thaphthalate (specially for power supply).
Modular-solutions-van-Movex

Caldic Techniek: your specialist for modular belts

Our experts will be happy to assist you if you are looking for specific conveyor parts or if you are interested in designing and assembling a conveyor system. Please feel free to contact us so we can share our knowledge and insights with you.
