STAMFORD generators
Caldic Techniek is the exclusive distributor of the reliable generators from STAMFORD.
Reliable and durable
The highly regarded STAMFORD alternators we supply are designed to ensure you a reliable power supply and a long service life, even when used in harsh conditions.
Would you like to know more about STAMFORD generators? Get in touch with us. Our experts will be happy to tell you more about the possibilities and applications of the various products we can offer.
Products
-
P0 - P1 Generators in marine version up to 55kVA
STAMFORD P0-P1 generators are available as 2- or 4-pole, making them very versatile for more demanding and challenging applications. The STAMFORD P0-P1 series has a maximum continuous output of 55 kVA at 60 Hz (45 kVA at 50 Hz) and an output voltage between 380-600 volts.
Voltage range (V) 380-600 Max. 50Hz Continuous (kVA) 45 Max. 60Hz Continuous (kVA) 55 Standard AVR AS480 Poles 2 of 4 pole Winding Pitch 2/3 Insulation class H -

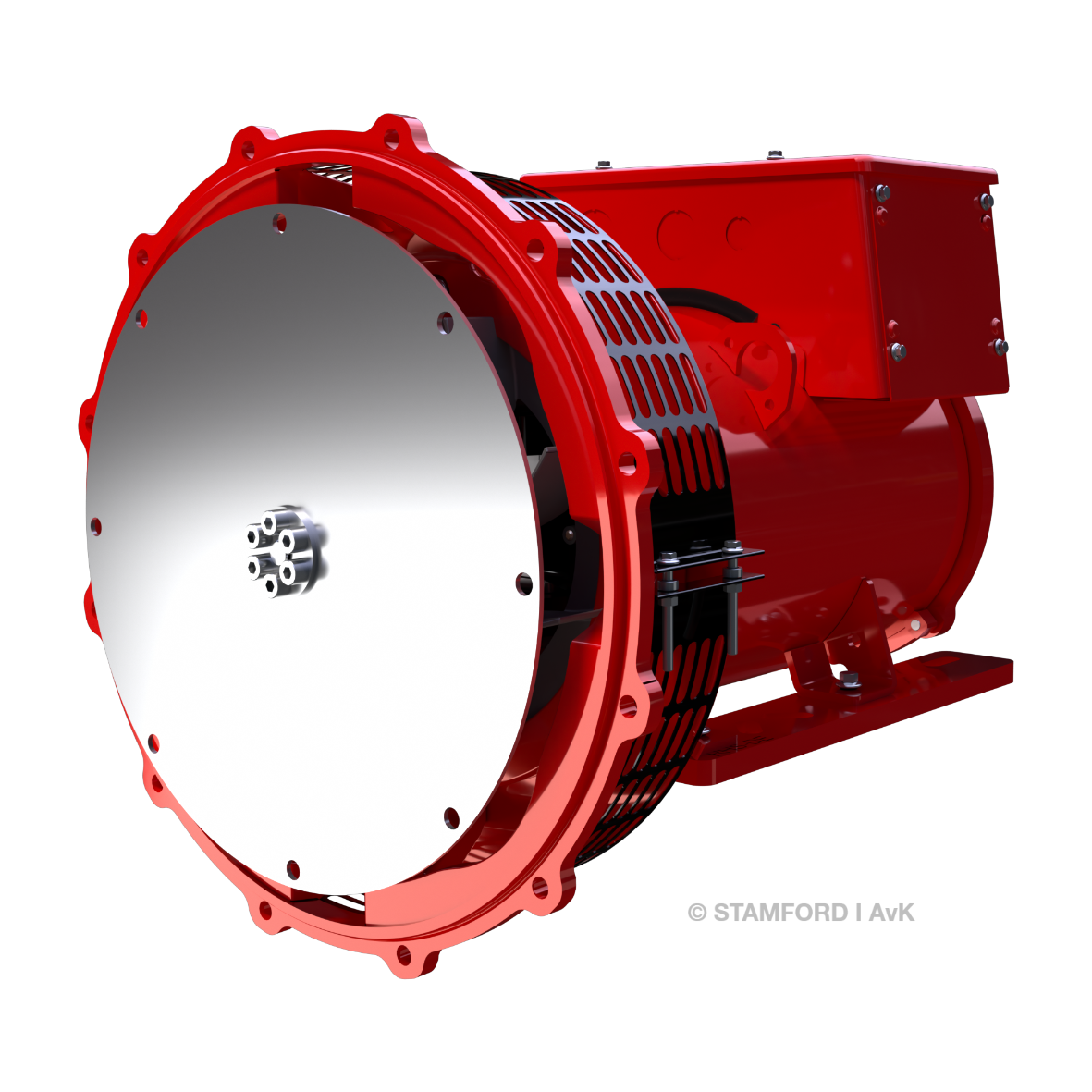

S0 en S1 Generatoren in industriële uitvoering tot 63 kVA
The STAMFORD S0 and S1 generators are designed with the customer in mind. The new S0 and S1 generators are built to be user-friendly with 20% faster assembly time and customizable feet so you don’t have to re-engineer when replacing an alternator.
The S0 and S1 generators have the option to add an auxiliary winding for better starting behavior and to improve short-circuit behaviour.
Voltage range (V) 380-480 Max. 50Hz Continuous (kVA) 63 Max. 60Hz Continuous (kVA) 75 Standard AVR AS540 Poles 4 pole Winding Pitch 2/3 Insulation class H -

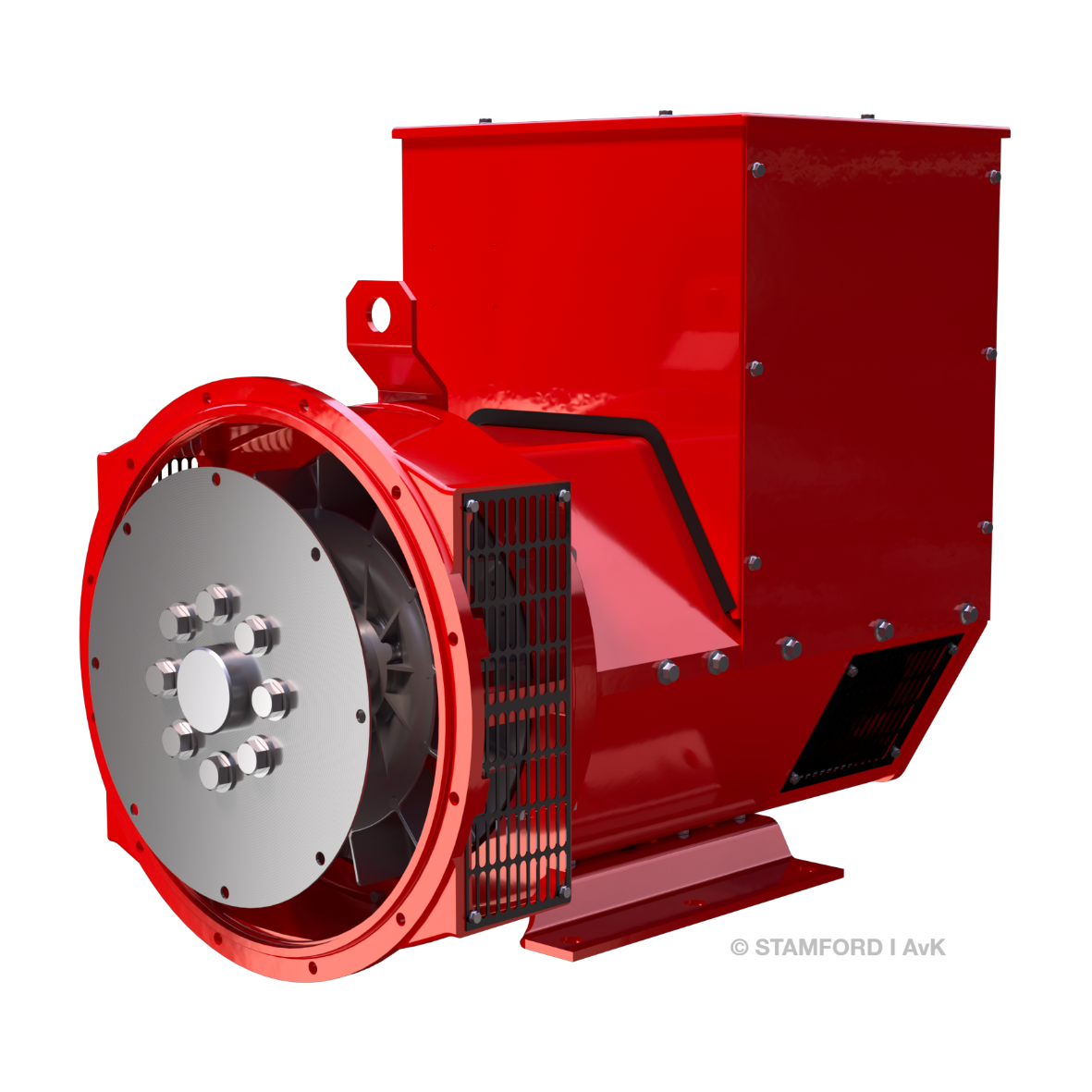

UC Series. Industrial or marine version up to 312 kVA
The proven and robust design of the STAMFORD UC Series generators allows them to be used for applications such as grid code, co-generation, marine, mobile generator sets, utility and telecom industries. The UC series is offered only as a 4-pole generator.
Voltage range (V) 380-960 Max. 50Hz Continuous (kVA) 250 Max. 60Hz Continuous (kVA) 312 Standard AVR AS440 Poles 4 pole Winding Pitch 2/3 Insulation class H -
S4 generators up to 560 kVA
The STAMFORD S4 range is the successor to the well-known HC family and is part of the STAMFORD S Series. The S-series features improved thermal behavior via the CoreCooling™ high-efficiency airflow system.
Voltage range (V) 380-690 Max. 50Hz Continuous (kVA) 450 Max. 60Hz Continuous (kVA) 560 Standard AVR AS440 Poles 4 pole Winding Pitch 2/3 Insulation class H -

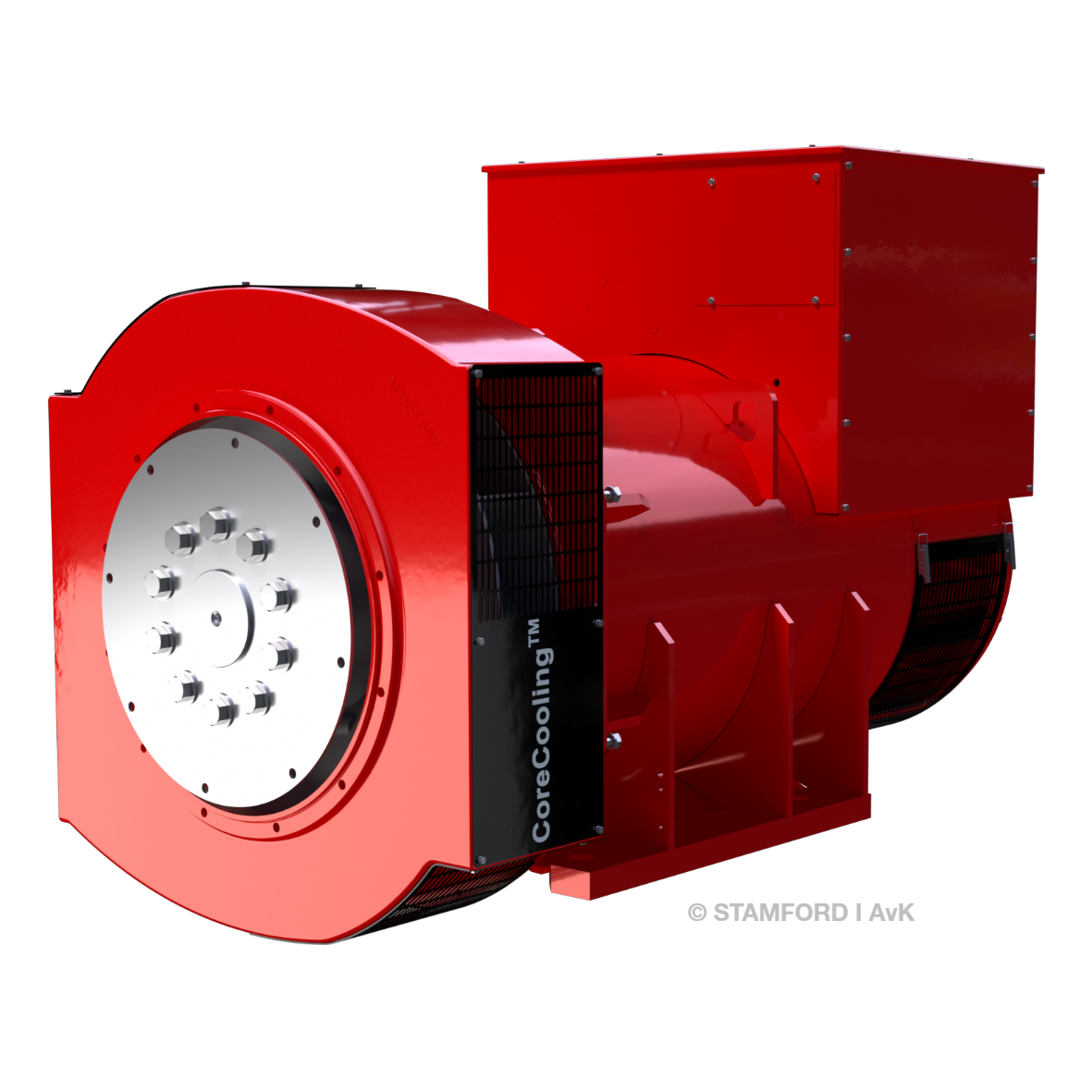

S5 generators up to 937 kVA
The STAMFORD S5 range is the successor to the well-known HC family and is part of the STAMFORD S Series. The S-series has improved thermal behavior via the CoreCooling™ high-efficiency airflow system. The S5 generator can be used for many purposes. For example, there are versions for marine, critical emergency power and connection to the grid, and various options and modifications are possible. We will be happy to advise you on this.
Voltage range (V) 380-690 Max. 50Hz Continuous (kVA) 750 Max. 60Hz Continuous (kVA) 937 Standard AVR AS440 Poles 4 pole Winding Pitch 2/3 Insulation class H -
S6 generators up to 1,695 kVA
The STAMFORD S6 is part of the STAMFORD S Series. The S Series has improved thermal behavior through the CoreCooling™ high-efficiency airflow system. The S6 generator can be used for many purposes. For example, there are versions for marine, critical emergency power and connection to the grid and various options and modifications are possible.
We are happy to advise you on this.
Voltage range (V) 380-690 Max. 50Hz Continuous (kVA) 1.400 Max. 60Hz Continuous (kVA) 1.695 Standard AVR MX321 with PMG Poles 4 pole Winding Pitch 2/3 Insulation class H -
P7 generators up to 2,800 kVA
The STAMFORD P7 combines high efficiency and good electrical performance, making it well suited for grid code applications and co-generation. The proven P7 design in the marine market makes it a preferred product for meeting the standards of demanding marine authorities. The P7 can be equipped with various options.
Voltage range (V) 380-690 Max. 50Hz Continuous (kVA) 2.325 Max. 60Hz Continuous (kVA) 2.800 Standard AVR MX341 with PMG Poles 4 en 6 pole Winding Pitch 2/3 Insulation class H -

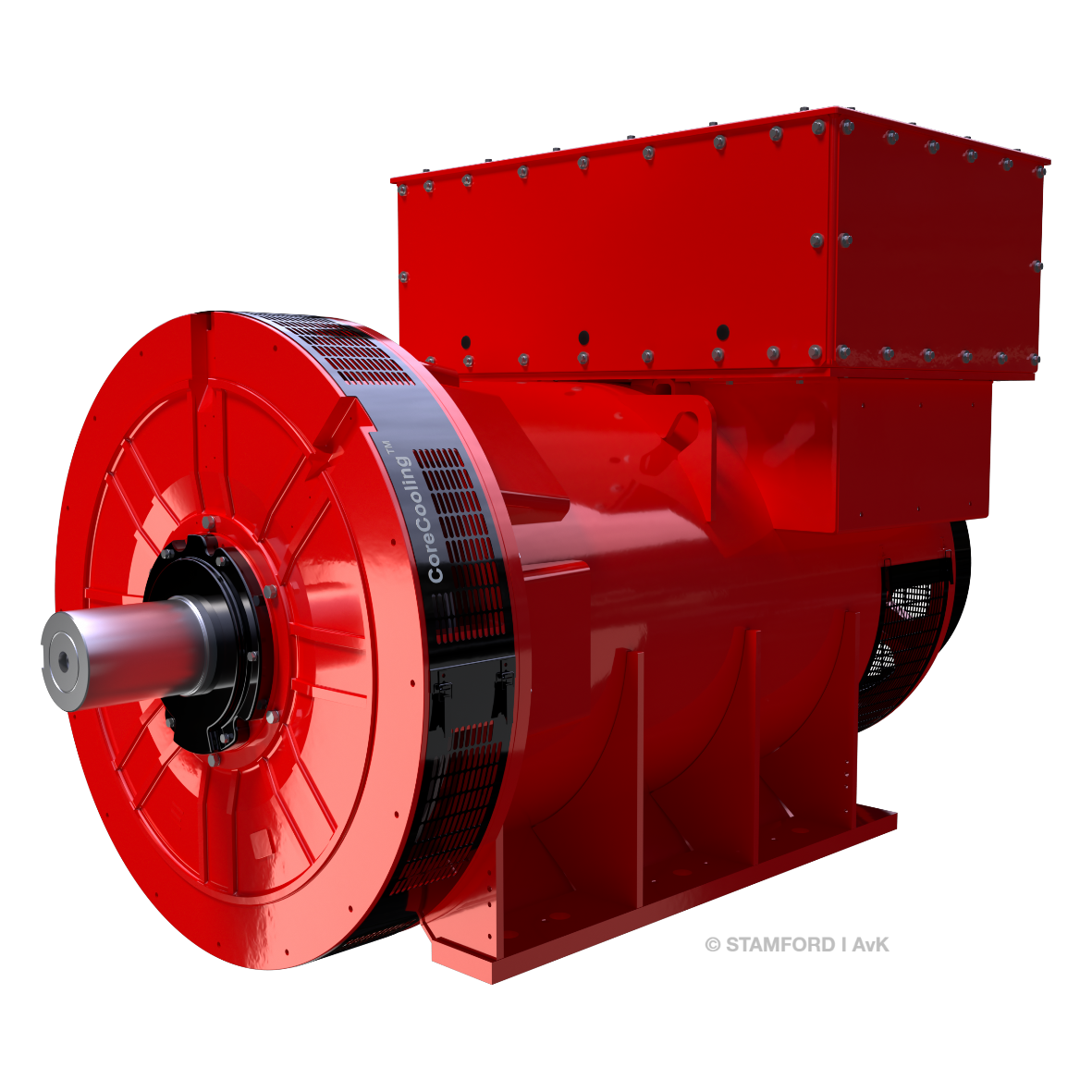

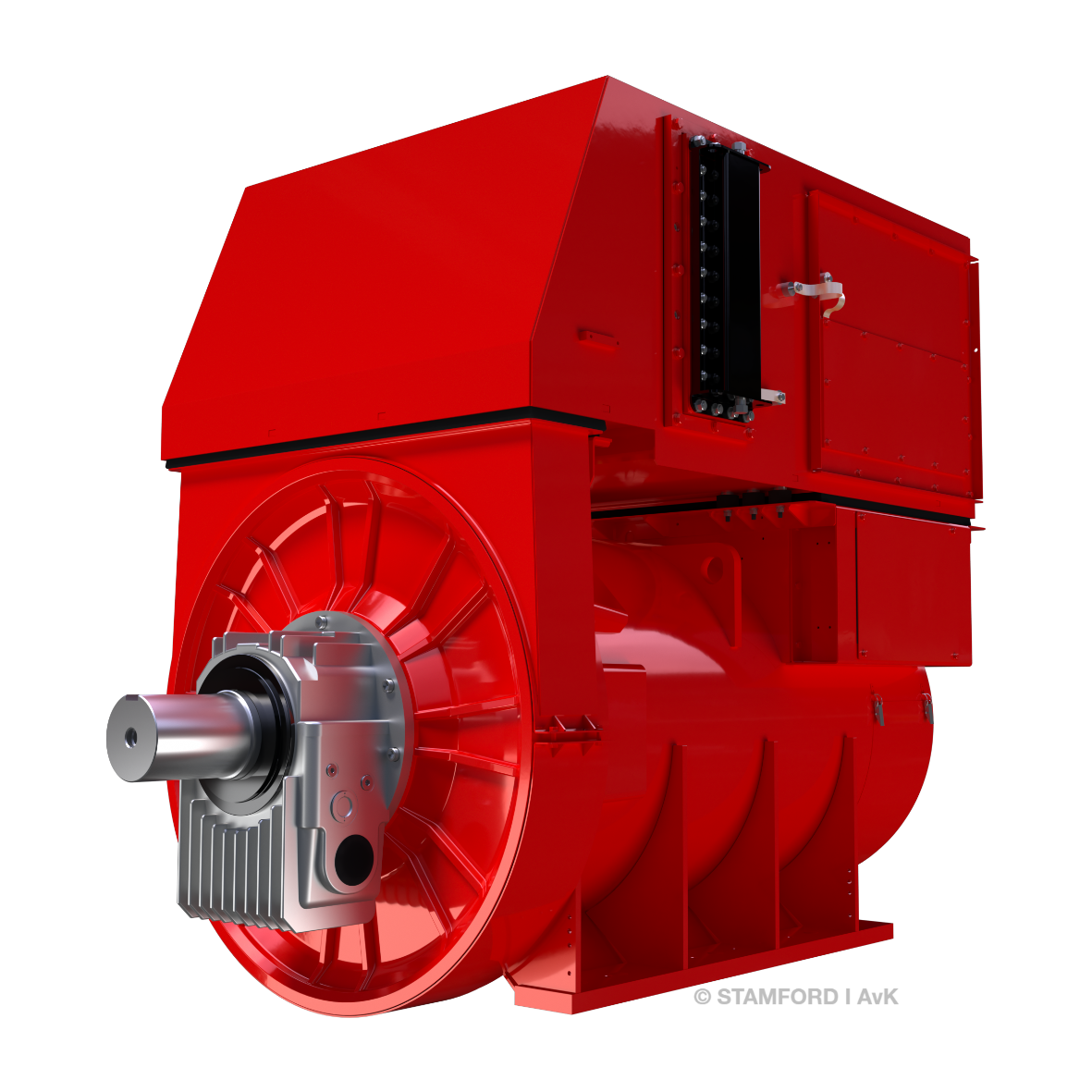

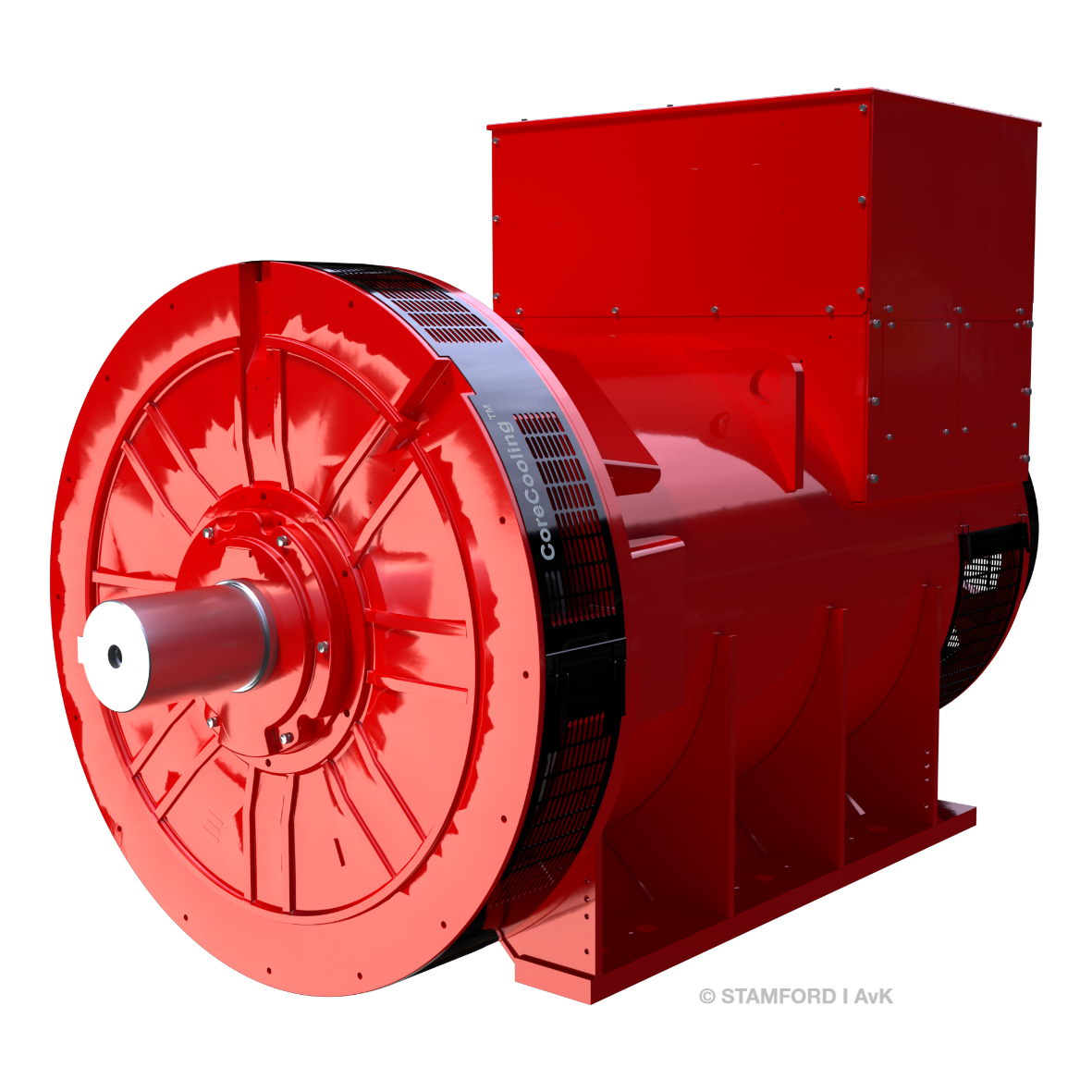

S7 low and medium voltage generator up to 3.356 kVA
The STAMFORD S7 is part of the STAMFORD S series and is the successor to the well-known P7 series. The S7 is available as a low voltage generator or as a medium voltage generator. The S7 generator can therefore be used for many purposes. For example, there are versions for maritime, critical emergency power and connection to the grid and there are various options and modifications possible.
We are happy to advise you on this.
Low Voltage
Voltage range (V) 380-690 Max. 50Hz Continuous (kVA) 2.800 Max. 60Hz Continuous (kVA) 3.356 Medium Voltage
Voltage range (V) 10.500-11.000 Max. 50Hz Continuous (kVA) 1.736 Standard AVR MX341, MX322 or DECS100 depending on model Poles 4 of 6 pole Winding Pitch 2/3 of 5/6 Insulation class H -
P80 low, medium and high voltage generators up to 5.100 kVA
The STAMFORD P80 series is a leading range of low, medium and high voltage generators with capacities up to 5.100 kVA. Due to its adaptability and versatility, the P80 has become the global generator of choice in many applications requiring a durable and robust 4-pole product in applications such as data centers, co-generation and critical standby applications. The P80 is available in both low and high voltage versions.
Low voltage
Voltage range (V) 380-690 Max. 50Hz Continuous (kVA) 4.200 Max. 60Hz Continuous (kVA) 5.100 Medium Voltage
Voltage range (V) 3.300-13.800 Max. 50Hz Continuous (kVA) 4.250 Max. 60Hz Continuous (kVA) 5.190 Standard AVR DM110 Poles 4 pole Winding Pitch 2/3 Insulation class H -
S9 medium voltage generator up to 5.000 kVA
The STAMFORD S9 is part of the STAMFORD S range with output voltages from 3,300 to 13,800 V. This medium and high voltage generator has a new design with optimized power density. The S9 generator is available with various options.
We would be happy to advise you.
Voltage range (V) 3.300-13.800 Max. 50Hz Continuous (kVA) 4.500 Max. 60Hz Continuous (kVA) 5.000 Standard AVR DM110 Poles 4 pole Winding Pitch 5/6 Insulation class H
Complete solutions from Caldic Techniek
Would you like to know more about the complete solutions we can offer based on our complete product range? We will be happy to provide you with advice based on our years of in-depth experience in the application of our products.
